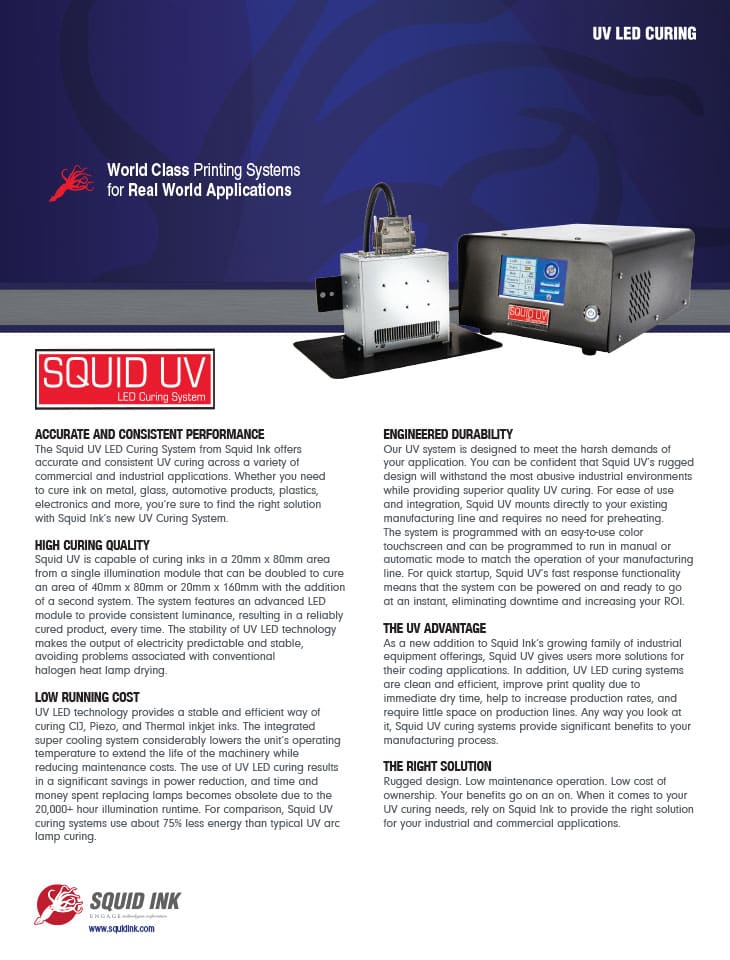

Squid UV LED Curing System

  • Single head curing area of 20mm x 80mm
  • *Dual head curing area of 40mm x 80mm or 20mm x 160mm
  • Stable and efficient way to cure ink
  • 20,000+ hour illumination run time reduces cost associated with lamp replacement
  • Small footprint allows for ease of integration on existing conveyor lines
  • Increase production rates while eliminating lengthy dry times

The Squid UV LED Curing System from Squid Ink offers accurate and consistent UV curing across a variety of commercial and industrial applications. Whether you need to cure ink on metal, glass, automotive products, plastics, electronics and more, you’re sure to find the right solution with Squid Ink’s new UV Curing System.

High Curing Quality

Squid UV is capable of curing inks in a 20mm x 80mm area from a single illumination module that can be doubled to cure an area of 40mm x 80mm or 20mm x 160mm with the addition of a second system. The system features an advanced LED module to provide consistent luminance, resulting in a reliably cured product, every time. The stability of UV LED technology makes the output of electricity predictable and stable, avoiding problems associated with conventional halogen heat lamp drying.

Low Running Cost

UV LED technology provides a stable and efficient way of curing CIJ, Piezo, and Thermal inkjet inks. The integrated super cooling system considerably lowers the unit’s operating temperature to extend the life of the machinery while reducing maintenance costs. The use of UV LED curing results in a significant savings in power reduction, and time and money spent replacing lamps becomes obsolete due to the 20,000+ hour illumination runtime. For comparison, Squid UV curing systems use about 75% less energy than typical UV arc lamp curing.

uv-featimg_5

Squid UV LED offers instant on / instant off curing.

uv-featimg_4

Standard bracketry allows Squid UV LED to mount directly to your existing manufacturing line.

uv-featimg_2

Adjustments are easily made with the simple-to-use touchscreen interface.

uv-featimg_6

Squid UV LED provides reliable curing on coated cartons, plastics, metals, foils, film, rubber, and more.

BENEFITS OF THE UV LED CURING SYSTEM

  • Single head curing area of 20mm x 80mm
  • *Dual head curing area of 40mm x 80mm or 20mm x 160mm
  • Stable and efficient way to cure ink
  • 20,000+ hour illumination run time reduces cost associated with lamp replacement
  • Small footprint allows for ease of integration on existing conveyor lines
  • Increase production rates while eliminating lengthy dry times

SYSTEM SPECIFICATIONS

  • Wave Length – 395 ± 5nm
  • Irradiancy – 12W / cm ²
  • Effective Illumination Area (Single Head) – 20mm x 80mm
  • Effective Illumination Area (*Dual Head) – 40mm x 80mm or 20mm x 160mm
  • Recommended Illumination Height – 1.5 – 10mm from substrate
  • Production Line Dry Time – Up to 35m/min depending on substrate
  • Control Modes – Manual or Automatic
  • Controller Dimensions – 13” x 9” x 5.2” (33cm x 23cm x 13cm)
  • Illuminating Head Dimensions – 4.7” x 2.6” x 4.7” (12cm x 7cm x 12cm)
  • Lamp Shield Dimensions (Single Head) – 9” x 6.7” (23cm x 17cm)
  • Lamp Shield Dimensions (*Dual Head) – 9” x 9.3” (23cm x 24cm)
  • Illuminant Output Control – 10% – 100%
  • Power Supply – 90 – 220V AC 50/60Hz 500W (single head) 1000W (dual head)
  • LED Lifetime – 20,000 hours or more
  • Working Environment– 32°F (0°C) – 95°F (35°C)
  • Storage Environment – 14°F (-10°C) – 140°F (60°C)
