SquidCheck Print Validation System

SquidCheck™ offers print and verification of the bar codes printed on your cases, trays, pipe, or other products. SquidCheck utilizes bar code readers from Cognex®, the world’s most trusted machine vision and industrial bar code reading company. The reader is integrated with a Squid Ink printer and SquidCheck interface to ensure that codes are present, scannable, and accurate.

Identify & Eliminate Failures From Your Production Line

SquidCheck allows users to automatically take control of your packaging line. Once a code is printed, the reader reads the code while SquidCheck communicates with the printer to confirm that this is the correct code to be printed. Code failures are identified and rejected as desired while SquidCheck safeguards that only correct and properly coded products advance to the next stage of your production line.

Capture Performance Data From Every Code

Performance data is captured, stored, and can be transferred to your business systems for evaluation or enhanced visibility. Users can receive images and feedback of each and every code, or just the errors as desired.

Analyze Print Data & Make Improvements

The SquidCheck system gathers valuable data on reader and printer performance, and automatically catalogues each code. By analyzing data trends, users can identify issues due to poor printer setup or maintenance and help improve their overall coding performance.

SquidCheck's Cognex reader checking boxes on a production line

SquidCheck is integrated with a Cognex® reader and Squid Ink printer to ensure that codes are present, scannable, and accurate.

Cognex readers offer straight or right-angled configurations to fit into the tightest spaces.

SquidCheck software gathers valuable data on reader and printer performance and allows user to improve their overall coding operation.

Examples of 1D and 2D barcodes that SquidCheck validates

SquidCheck offers print and validation of 1D or 2D bar codes printed on all of your products.

Squid Ink is a GS1 US Solution Partner, dedicated to helping businesses implement GS1 standards

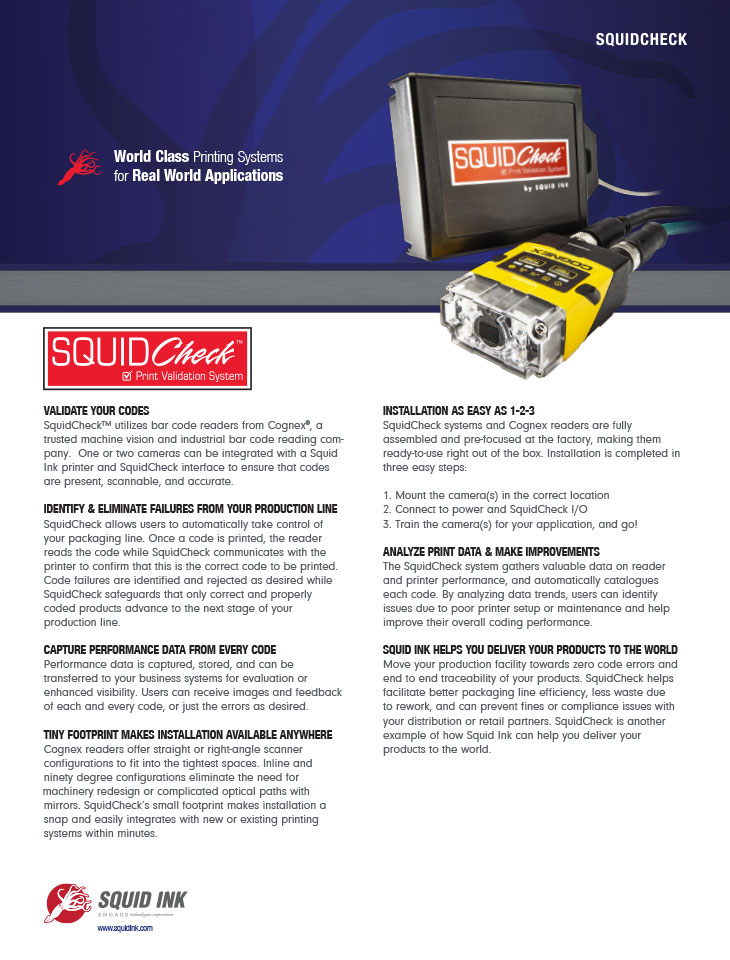

Brochure for the SquidCheck Print Validation System

SquidCheck Brochure

Features

FEATURES OF THE SQUIDCHECK PRINT VALIDATION SYSTEM

Bar code print quality validation on the fly
Performance feedback on each and every code or error if needed
Reporting of real-time or historical data
Traceability of your product and protection of your brand
Elimination of rework due to missing or unreadable codes because of poor printer setup or maintenance
Cognex reader provides best-in-class read rates
Easy to install system and simple software

Specifications

SYSTEM SPECIFICATIONS

Bar Codes – All standard including 2D
Image Resolution – 1280 x 960 global shutter
Image Sensor – 1/3” CMOS
Acquisition – 10 fps
Max Decode Rate – 10 decodes/second
Aiming LEDs – Two green LED focusing targets
Status Outputs – Light beacon, print verification status
Power Requirements – 100 – 240 VAC, 50/60 Hz
Communication – USB input to Squid Check I/O, ethernet to reader
Reader Dimensions Straight Position – 1.7”L x .9”W x 2.5”H (43.1mm L x 22.4mm W x 64.0mm H)
Reader Dimensions Right-Angle Position – 1.7” L x 1.4” W x 2.0” H (43.1mm L x 35.8mm W x 49.3mm H)
SquidCheck I/O Dimensions – 4.0” L x 3.0” W x 1.875” H (102mm L x 76mm W x 48mm H)
Operating Temperature – 32°F – 104°F (0°C – 40°C)
Storage Temperature – 14°F – 140°F (-10°C – 60°C)
Operating System – Windows 7 (32/64-bit), Windows 8, Windows 10, or Windows XP (32/64 bit)
