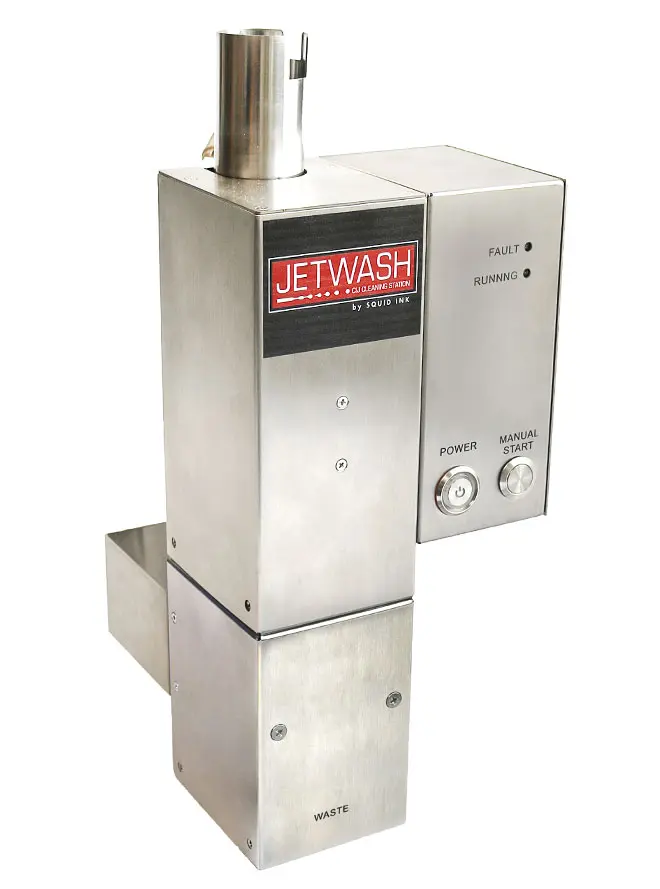

JetWash Automated CIJ wash station
- Quickly cleans and dries printheads
- Eliminates dried ink and debris
- Powerful air jets
CIJ Maintenance Solution
The JetWash is an automated wash station designed to work with JetStream CIJ printing systems. Controlled directly from the JetStream controller, it quickly cleans and dries printheads. Simply place a JetStream printhead into the JetWash holder, and the system pumps makeup fluid through the cleaning bay to wash away dried ink and debris. The used fluid drains into a waste container and powerful air jets dry the printhead. Once complete, just reattach the cover, test the printhead, and you’re ready to print again!

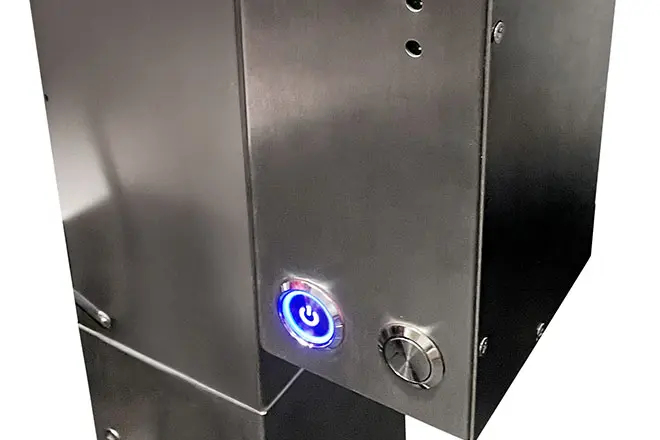

JetWash controller

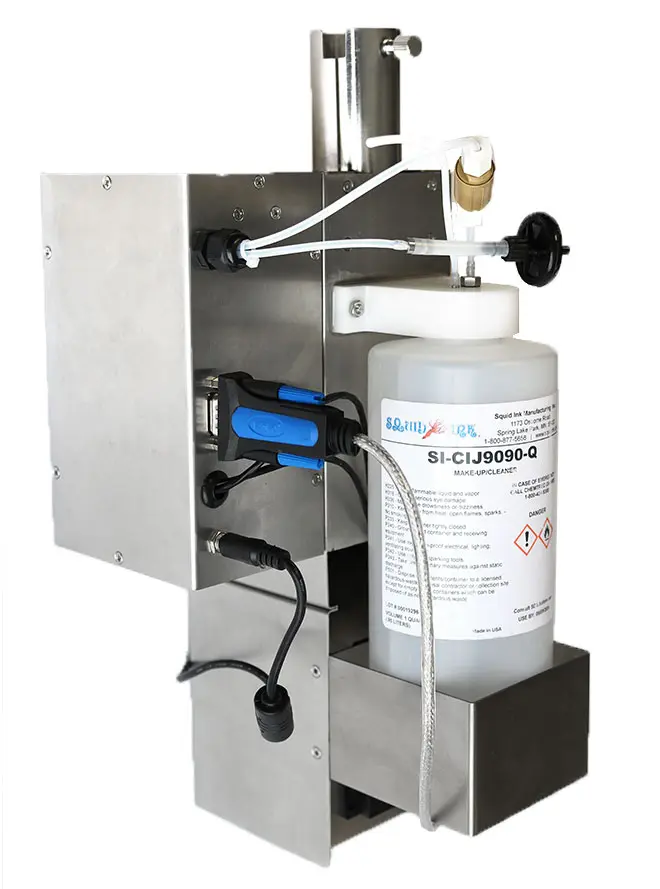

JetWash components

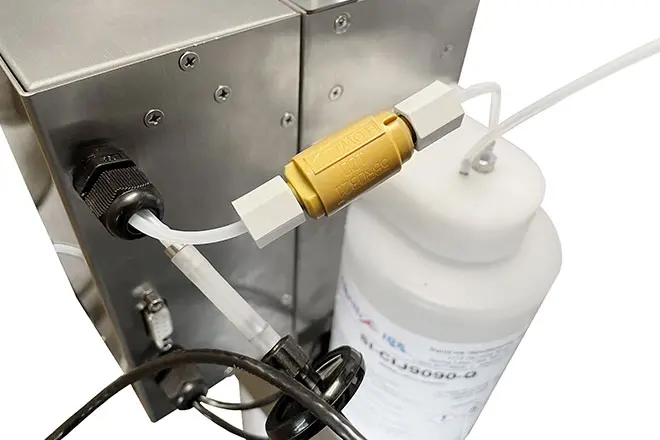

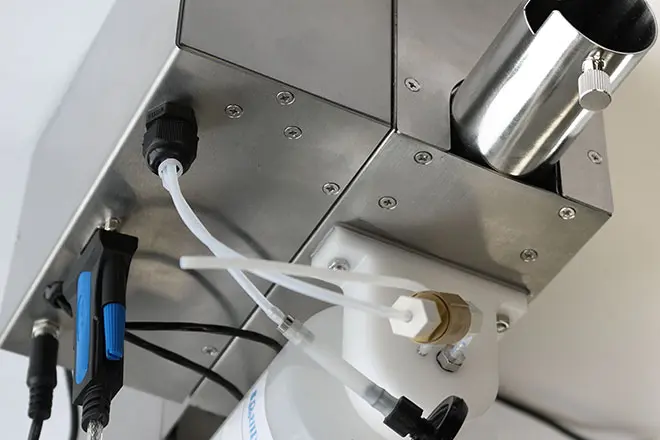

JetWash Fluid Filter, Air Supply, and Venting Tube

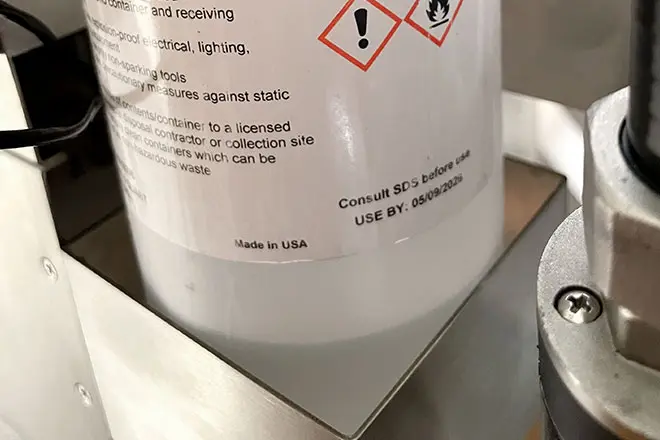

Clean Makeup Container and Housing
Squid Ink is a GS1 US Solution Partner, dedicated to helping businesses implement GS1 standards
How the JetWash Works
Controlled from the JetStream Console, the JetWash Station can clean the inside of a JetStream Printhead or backflush the Gun Body. When a coverless JetStream Printhead is inserted into the JetWash’s Printhead Holder, the JetStream activates a Pump in the JetWash’s Motor Housing to pull makeup fluid from the Clean Makeup Container and spray it at the Gun Body inside the Cleaning Bay. The makeup fluid washes away ink and contaminants, which drain down into the Waste Makeup Container. The Jetwash then shoots jets of air at the Printhead to dry it. Once dry, the Printhead can be removed from the JetWash, the Printhead Cover secured back on it, and it can be tested to verify that it is ready to print again.
JetWash Specifications
- Power - 110 - 240V
- Nozzle - 270u
- Ambient Temperature Range - 41 ° – 113 °F; 5 ° – 45 °C
- Humidity Range - <90% (no condensation)
- Dimensions (H x W x L) - 21.02” X 6.46” X 7.44”; 53.4cm X 16.4cm X 18.9cm
- Communications Interface - 9-PIN Serial Port (DB9)
